• Product Description
    Company Info.
    Model:
    LR 325/001
    Processing customization:
    No
    Specifications:
    1 stick/box
    Overall dimension:
    120X20mm mm
    Weight:
    1-2 kg
    Material:
    Stainless steel 316Ti
    Packing quantity:
    1 stick/box

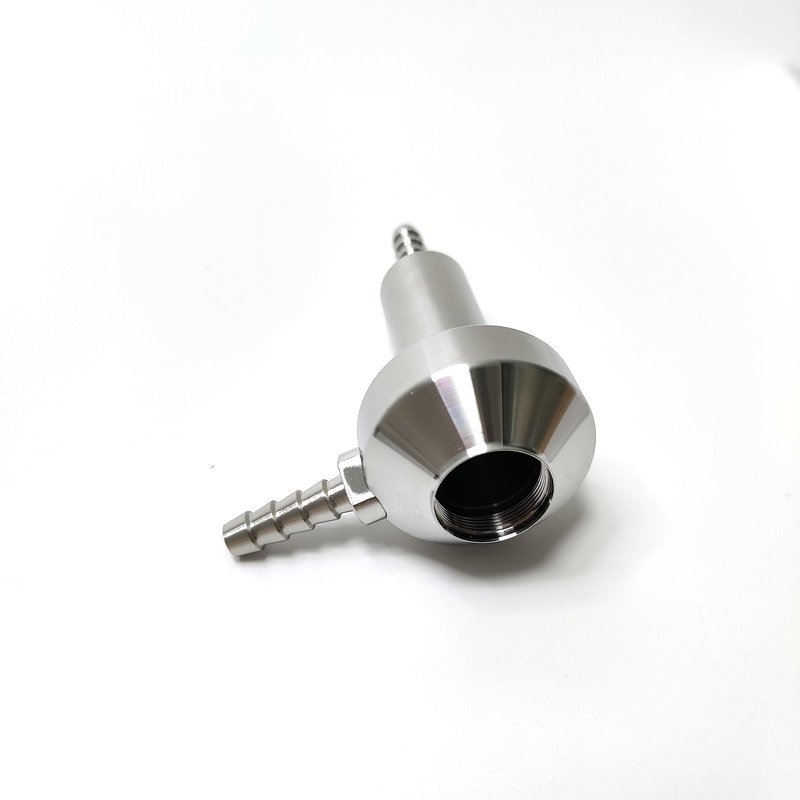

    LR 325/001 Pure Water Conductivity Sensor Germany WTW



    1. Introduction to electrode



    Conductivity is an important parameter to measure the conductivity of water. Water can conduct electricity because it contains ions. Real pure water is not conductive. Therefore, the cleanliness of water can be known by measuring the conductivity. By testing the conductivity of sewage, you can know how much salt content of sewage, and the same test of pure water conductivity can know the cleanliness of pure water. Conductivity monitoring is also required in the food and pharmaceutical industry.





    (1)LRD 01

    Stainless steel material, pipeline installation. Built-in temperature probe, high temperature resistance up to 130℃, pressure resistance 14 bar, 1/2 inch NPT thread. Test ranges from 0.01 uS/cm to 200 uS/cm.



    (2)LRD 325

    Pipeline installation. Built-in temperature probe, temperature resistance up to 100℃, pressure resistance 10 bar, 1/2 inch NPT thread. Test ranges from 1 uS/cm to 2 S/cm.





    (3)LR 325/01

    Pure water and boiler water detection, stainless steel, with circulation tank, built-in temperature probe. The test range ranges from 0.001 uS/cm to 300 uS/cm.



    (4)LR 325/001

    Ultrapure water test, stainless steel, with circulation tank, built-in temperature probe. Test ranges from 0.0001 uS/cm to 30 uS/cm.& nbsp;



    II. Technical parameters



    model

    LRD 01

    LRD 325

    LR 325/01

    LR 325/001

    electrode type

    dipolar

    quadrupole

    dipolar

    dipolar

    the cell constant

    0.1/cm, ±2%

    0.475/cm, ±1.5%

    0.1 /cm

    0.01 /cm

    test range

    0.01-200us/cm

    1us/cm-2s/cm

    0.001- 200 uS/cm

    0.0001-30 uS/cm

    install

    PIPING INSTALLATION 1/2 NPT

    PIPING INSTALLATION 1/2 NPT

    flow-through type with flow-through slots

    flow-through type with flow-through slots

    and IQ transmitter connections

    KI/LF-MIQ/S

    (505 543)

    KI/LF-MIQ/S

    (505 543)

    KI/LF-MIQ/S(505543)+

    ADA/AMPH-LAB-LF

    (303212)

    KI/LF-MIQ/S (505543) +

    ADA/AMPH-LAB-LF

    (303212)

    temperature probe

    Built-in NTC

    Built-in NTC

    Built-in NTC

    Built-in NTC

    temperature range

    0…+130℃,±0.2K

    0…+100℃,±0.2K

    0…+100℃,±0.2K

    0…+100℃,±0.2K

    * High pressure

    14 bar 20℃

    10 bar 20℃

    2 bar 20℃

    2 bar 20℃

    texture

    316Ti stainless steel

    Electrode rod: epoxy/graphite

    Stainless steel 316Ti

    Stainless steel 316Ti

    size

    133X25mm

    133X25mm

    120X12mm

    120X20mm
























    III. Ordering information



    model

    explain

    order number

    TetraCon 700 IQ

    Immersion IQ conductivity sensor for water/wastewater applications

    302 500

    SACIQ-7.0

    IQ dedicated cable, 7 meters long

    480 042

    LRD 01-7

    Immersed conductivity sensor for boiler feed water/ion exchanger, cable length 7.0m

    302 222

    LRD 325-7

    Immersion conductivity sensor for water/wastewater applications, cable length 7.0m

    302 229

    KI/LF-MIQ/S

    IQ Digital Conductivity Junction Box

    505 543





























    (LR 325/001 Pure Water Conductivity Sensor WTW Germany)
