• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Processing customization:
    No
    Model:
    inoLab Oxi 7310
    Measuring range:
    0.00-20.00mg/l
    Measurement accuracy:
    0.01/0.1
    Operating temperature:
    0-50 ℃
    Size:
    - mm
    Weight:
    - kg
    Applicable scope:
    Measuring dissolved oxygen
    Product Description

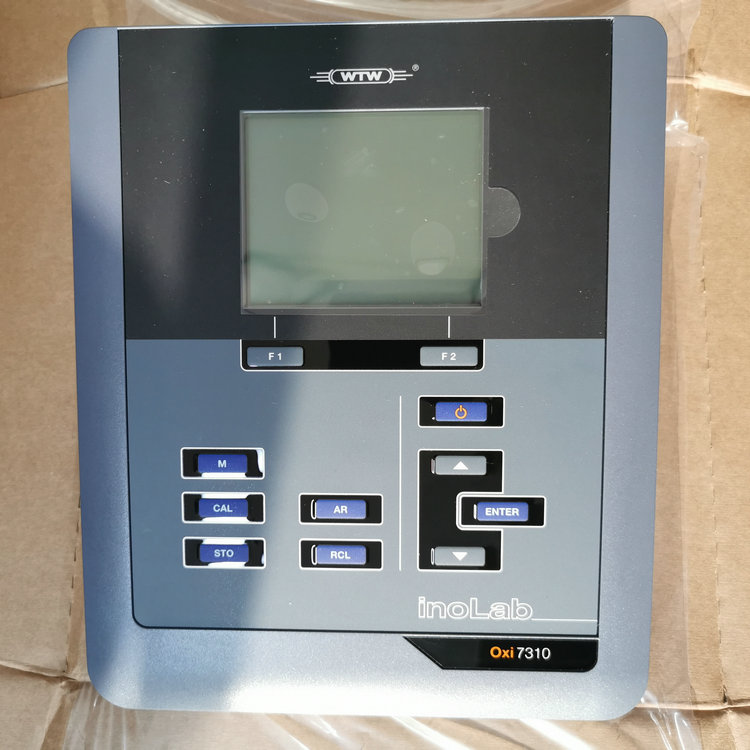

    GermanyWTW  BOD meter inoLab Oxi 7310

    I. Product introduction
    It is suitable for precision measurement in various industries and conforms to GLP/AQA standards. The meter is equipped with a special connection port for connecting StirrOx-G self-stirring dissolved oxygen sensor.An optional built-in printer is also available.
    1,USBinterface, can quickly transfer data
    Data format is.csv
    3, optional built-in printer
    4, can be connected to the stirring dissolved oxygen electrodeStirrOx-G
    5, automatic pressure compensation, manual salinity compensation
    6, large-capacity memory, can store5000groups of data

    II. Technical parameters

    model inoLab Oxi 7310
    measuring range
    (Resolution)    		 Dissolved oxygen:
    0.00-20.00mg/l (0.01/0.1)
    0-90.0mg/l (0.1/1)
    Saturation:
    0-200.0%(0.01/0.1)
    0-600%(1)
    Oxygen partial pressure:
    0-200.0mbar (0.01/0.1)
    0-1250mbar (1)
    Temperature:
    0-50.0℃（0.1）
    degree of accuracy Dissolved oxygen, saturation, oxygen partial pressure:±0.5%measured value
    Temperature:0.1℃
    temperature compensation 0-+40℃ range accuracy <2%
    pressure compensation Built-in air pressure sensor,500-1100mbar, automatic compensation
    salinity calibration 0-70.0Manual adjustment
    data storage Manual500/Automatic5000
    display LCDgraphic display with backlight
    port Mini USB
    power supply Universal power supply, or41.5Valkaline batteries, orUSB
    battery life 800hourswithout backlight or100hourscontinuous backlight

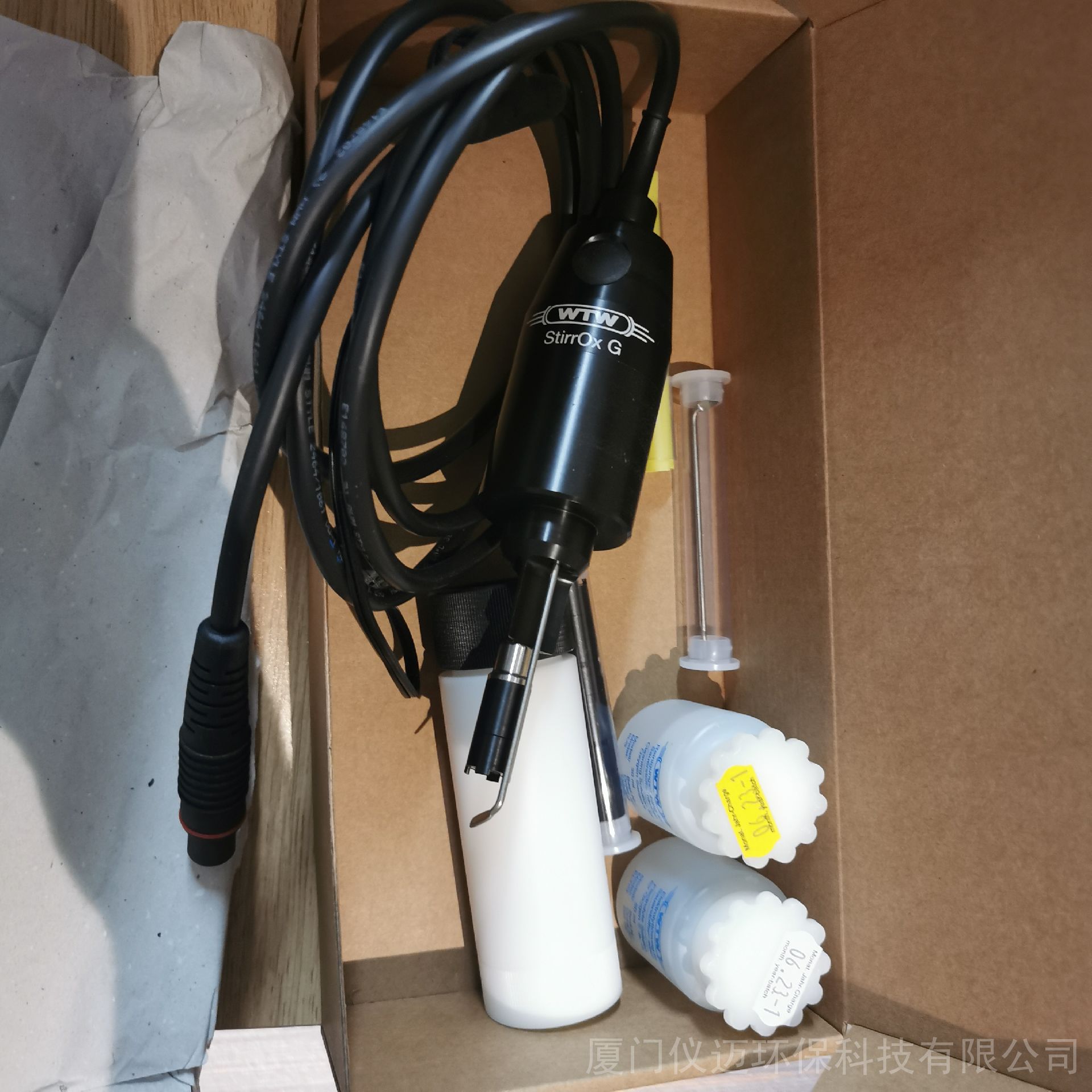

     III. Self-stirring dissolved oxygen electrode StirrOx-G
    Self-stirring electrochemical dissolved oxygen electrode, with a specific BOD test bottle for testing.
    1, one-handed operation, for rapid measurement;
    2, constant flow rate, with high repeatability;
    3. Very low inherent oxygen consumption, only0.008ug·h-1(mg/l)-1
    4. Membrane leakage self-detection
    5, a single electrolyte filling service life of up to6months
    technical parameters
    model StirrOx-G
    measuring range Dissolved oxygen: 0 - 50 mg/l
    Saturation: 0-600%
    Oxygen partial pressure: 0-1250mbar
    Temperature:0-50℃
    required flow rate By bringing your own mixer
    response time t90 <10s(dissolved oxygen sensor)
    t90<60s(temperature sensor)
    level of protection IP 67(immersion parts to * maximum immersion depth)
